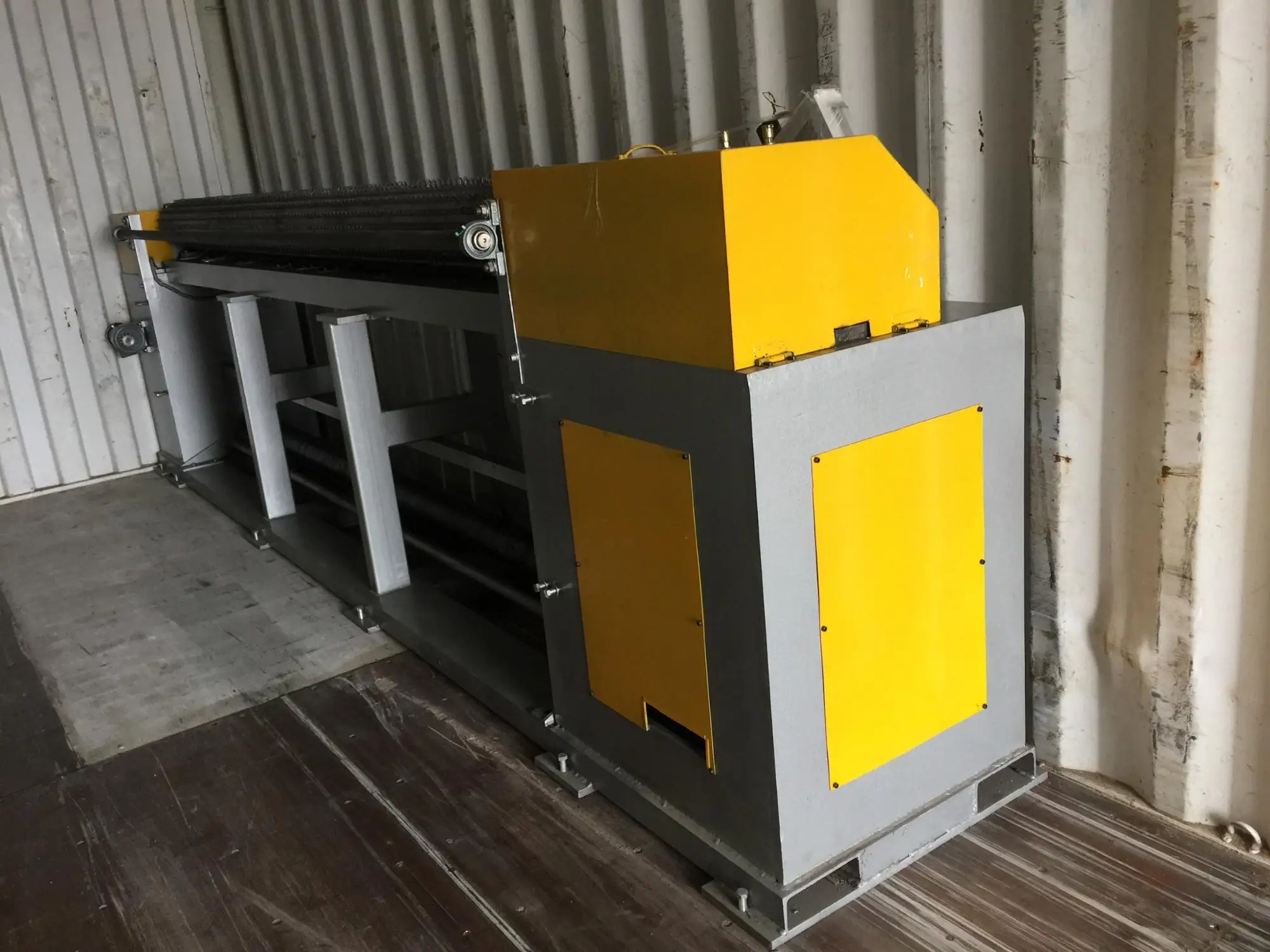

Automatic Normal Twisted Hexagonal Wire Netting Machine

FOB Reference Price:Get Latest Price
  • 1 - 4 Sets
    $19,999.00
  • >=5 Sets
    $17,999.00
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Hebei, China, Hebei, China (Mainland)
Brand Name:
Baochuan
Model Number:
Baochuan
Wire Diameter:
0.5-1.5mm
Weight:
3.5-4.5T
Width:
2600mm-3300mm
Motor:
2.2 or 3 KW
Waranty:
one year
Name:
Automatic Normal Twisted Hexagonal Wire Netting Machine
After-sales Service Provided:
Overseas service center available
Supply Ability
Supply Ability:
100 Set/Sets per Week
Packaging & Delivery
Packaging Details
pvc coated hexagonal wire netting machine
Packed in container with fixed iron rope and wooden stick.
Necessarily, the machine will also be paint oil and plastic film.
Train transport or sea way are both ok.
Port
Tianjin
Lead Time :
5-10 work days

Hexagonal Wire Netting Machine







Approx Price: Rs 3.5 Lakh /Plant

Product Details:

Description : The hexagonal wire netting machine is designed to render hexagonal screens with galvanized low carbon steel wires, meant for structural, heat insulation, protective, and fencing applications. Hexagonal wire netting machine has several design outlets including horizontal design, ensuring smooth running and high productivity.

Hexagonal Wire Netting Machine

  • Bobbin Winding Machine
  • Spiral Wending Machine


Features

  • Machine makes netting from spring coil and bobbins.
  • Bobbin Winding and Spiral Winding machine are required to run the main machine.
  • Machine produces Double Twist type of mesh.
  • With additional main rack and parts mesh sizes can be made, supplied as optional equipment at additional cost.
Specification
Width mm/ftMesh Pitch 'A'Wire Dia.No.of Twists

Total Weight kg[aprox.]

Power Reg'd Motor kw
mminchmmswg
1850---[6']151/2"0.5424220002
2745-----[9']185/8"0.50-0.9024---22235003
2745-----[9']223/4"0.70-1.024--20235003
2745-----[9']261"0.45-1.226--18235003




Operations

  • Machine is run by pinion on the front and rear rack of the machine.
  • The wires which are fed from the bobbins and also from the spiral coil (prepared in spiral coiling machine)
  • Placed in the holes of pinion on the front and rear rack of the machine produces the netting.
  • When the length of netting reaches thedesiserd (45meterSTD) length, the same is cut by scissor
  • They are classified five types according to the different opening: 1", 1 1/4", 11/2", 2", and 3".
  • The machine can continuously work, below are the characteristics:
  • Smooth running, low noise



They are our clients:





If you have any questions, pleace contact us:





Our Services

1.We are professional manufactuer with many years of experiences;

2. We have advanced facilities for production, most of the products are welded by automatic machine;

3. Direct factory, high quality, favorable price;

4. Friendly & professional before/after-sales team;

5. We can arrange car pickup or hotel booking whenever you want to visit our factory;

6.Don't hesitate, any ideas, please contact us!



FAQ

Q:1. Are you factory?

A: Yes, located in dingzhou,Hebei. The headquarter is in Xi’an, Shaanxi (the most famous old capital of China).


Q:2.What product specifications can be determined by customers?
A: Customers can choose the raw materials , the type of surface treatment and assembly, as well as packaing.


Q:3.How long do orders take to produced and delivered?
A:Lead time varies case by case.The customers will be informed when an order is placed.

Q:4.Can I still get an estimate without a diagram?
Yes,we can make a sketch based on your description.Enter the dimensions you have in mind by email and we will let you know if there are any remaining
