High Quality Factory Price villa decorative fencing 3d wire mesh fence
- Supply Ability:
- 2000 Set/Sets per Week
- Port:
- Tianjin
- Type:
-
Fencing, Trellis & Gates
- Place of Origin:
-
Hebei, China (Mainland)
- Brand Name:
-
Baochuan
- Model Number:
-
LQ-ST-FT-111
- Frame Material:
-
Metal
- Metal Type:
-
Steel
- Pressure Treated Wood Type:
-
Heat Treated
- Frame Finishing:
-
Powder Coated
- Feature:
-
Easily Assembled, Eco Friendly, Rodent Proof, Rot Proof, Waterproof
- Material:
-
Hot-dip galvanized tube
- Finish:
-
Powder coating
- Color:
-
black, white, etc.
- Height:
-
1800mm or 2100mm
- Width:
-
2400mm
- Pickets:
-
25*25mm square*1.2mm wall thickness
- Rail:
-
40*40mm square *1.6mm wall thickness
- Post:
-
60*60mm
- Packaging Details
- Plastic foam+metal pallet
- Delivery Time
- 7-15 days
High Quality Factory Price villa decorative fencing 3d wire mesh fence
Product Show |
Picture of villa decorative fencing 3d wire mesh fence
Specification Introduction of villa decorative fencing 3d wire mesh fence
1. Heavy duty Crimp top picket steel fence in Black color.
2.Width 2400mm x Height 1800mm Crimp top diamond shape.
3.40x40x1.6mm top rail,25x25x1.2mm Verticals
4. There are 17 vertical pickets 25x25mm with diamond crimped on top.
5. Gap in between the pickets is110mm
6. 60x60x2mm thick post
7. Normal fence powder coated brackets
8. Powder coated Security fence brackets
9. Powder coated Caps for 60x60 posts
10. Phosphate treated before powder coating
11.All panels are fully protected
1) Our panels are made out of thicker material top and bottom rails 40x40x1.6and25x25x1.2 for all verticals
2) Gap in between the verticals is110mm compared to wider gaps with others.
3) We use for all our panels galvanized material only.
4) Very important is that we phosphate wash our panels before powder coating which means a very high quality
powder coating which will long last many years compared to my competitors.
Common specification: | Residential steel fence | Commercial steel fence or industrial steel fence |
Standard sections | Wide: 6’, 8’ | |
Height: 3', 3-1/2’, 4', 4-1/2’, 5' or 6’ | ||
Pickets | 5/8'' square x .050; | ¾” square x .05; 1’’ square x .063 |
(16 x16mm square x 1.2mm) | (19 x19mm square x 1.2mm);(25*25mm square x1.2mm or 1.6mm) | |
Spacing between Pickets | Residential standard 3-13/16'' and optional 1-5/8”; | Commercial standard 3-5/8” and optional 1-1/2”(The spacing between pickets must be less than 4" if the fence are used as pool fence) |
Fasteners | Hot-dip galvanized | Hot-dip galvanized |
Horizontal Rails | 1 1/8'' x 1'' with .080'' side walls and .062'' top walls | 1-1/4” x 1-3/8” with .088'' side walls and . 065'' top walls |
40*40mm | 40*40mm | |
38*25mm | 38*25mm | |
45*45mm | 45*45mm | |
Posts | 2'' square x .060, .080, or .125; 2-1/2” square x .100 | 2'' square x .080, or . 125;2-1/2” square x .100; and 3” square x .125 |
Finish | Power coat. Usually we use DuPont powder or Akzo Nobel, which can make it more durable, fade-resistant and scratch-resistant than other coatings. | |
Colors | Black, Satin Black, Bronze, Satin Bronze, Beige, Satin Khaki, White, Satin White, Forest Green | |
Assembled fence procedure: | Sections come fully assembled or welded. | |
1>Cut Shot | Custom width or height sections are available. | |
2>Punching Holes | ||
3> Acid washing | ||
4>Powder Coat | ||
5>Assembled | ||
Welded fence procedure: | ||
1>Cut Shot | ||
2>Punching Holes | ||
3>Profusion welded | ||
4>Acid Washing | ||
5>Powder Coat |
Usages:Widely used in villas, community, gardens, schools, factories and other flower beds, lawns, industrial
and mining enterprises, financial institutions, sports stadiums, convention centers, squares, roads, balconies,
residential use, its flowing lines, simple and beautiful and full of rich modern residential sensual, garden Light,
villas era of high grade. Simple installation, easy maintenance, easy to clean, affordable, eliminating maintenance.
Introduction every parts:

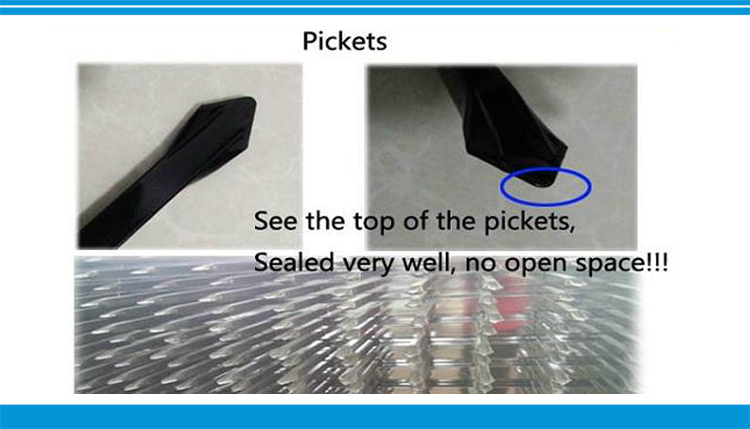

1. Pickets Detail:
Pickets top is so important. It must sealed very well on the top, or it is easy to rust. We
can insure you sealed very well pickets. Which highly improved the lifetime of the fence:

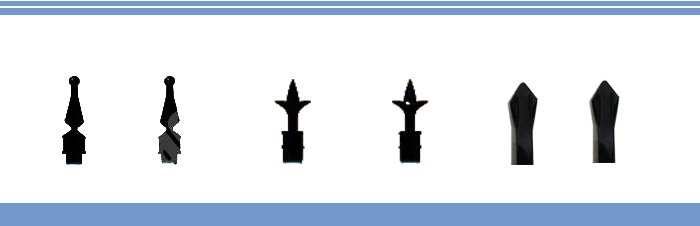

Another famous kind of pickets is finials (Usually tubular fence need finials):

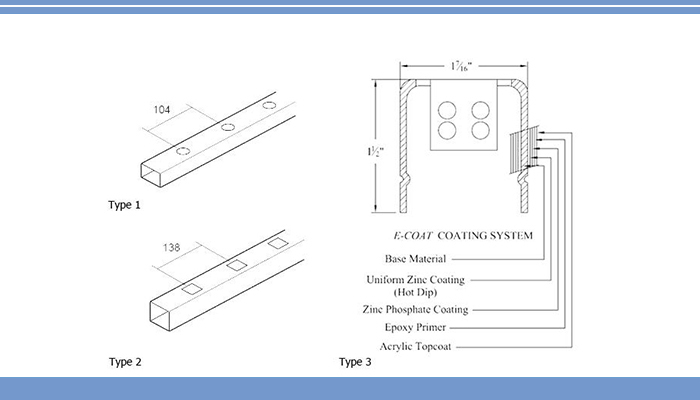

2. Horizontal Rails:
Type 1: Punch round hole on 20*40mm rail or 40*40mm or 45*45mm rail:
Type2: Punch square hole on 40*40mm rail or 20*40mm or 45*45mm rail:
Type 3: Punch holes on 1-7/16’’ * 1-1/2’’ “U” Type rail:

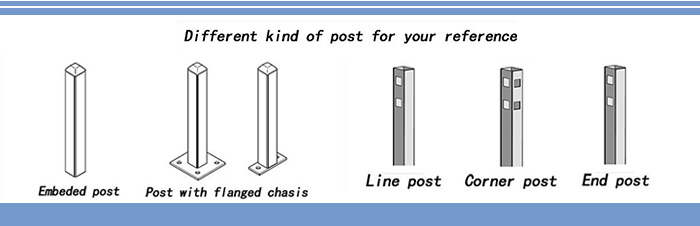

3. Posts:
According to the usage, posts can be divided into 2 kinds. One kind is embeded post (At least 50cm will
be embeded under the ground. The other kind is Post with flanged chasis. According to the direction,
posts including Line post, Corner post & End post.
4. Attachments or Connection between the post and the panel:
Above the attachment are made of hot-dip galvanized material, and powder coat the same color with the
Panels.
5. Types of Gates
Single Gates;Double Opening gates;Sliding Gate;Suspended gate

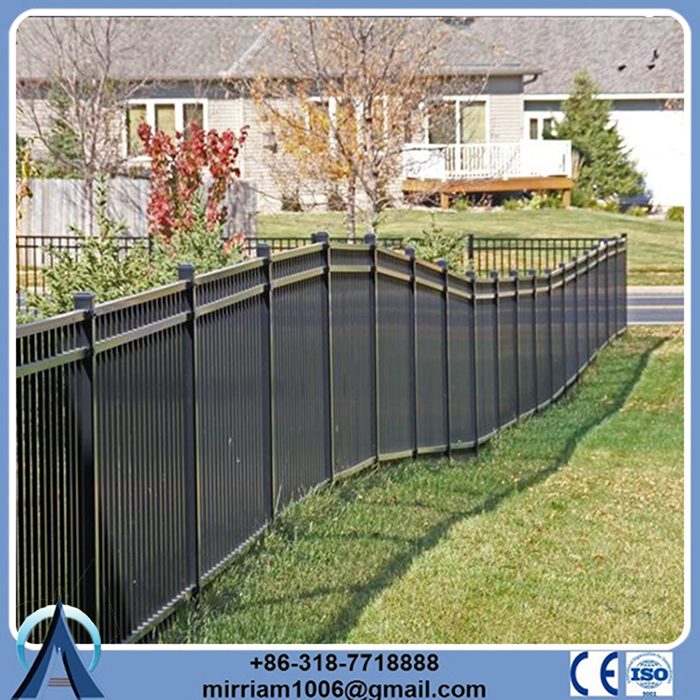

6. Panels which can suit up and down hills or slope terrain.
There are mainly 2 ways to suite the slope, one way is made the fence into slope fence, it can adjust according to the slope.
The other way is to install the fence like stairs step.
See the 2 ways below the pictures:
7. Steel fence, Available in Residential Series, Residential Series Premium, Commercial
Series, and Commercial Series Premium. Our company have a reinforced double-wall rail
with hidden fasteners.
Packaging and Shipping
More Products for You to Choose
Hot-dip galvanized chain link fence
Company Show |
Our company is located in Anping, Hengshui and is specialized in manufacturing all kinds of wire mesh products.
With an experienced and professional team, we have exported our products to many countries and regions
all over the world, especially North America, the Middle East, South America, Africa, and so on. Our products
enjoy good popularity among our customers.
We welcome customers, business associations and friends from all parts of the world to contact us and
seek cooperation for mutual benefits.
Our Team
Our Service
1) Our factory is in Anping county, where is the origin of wire mesh in China. So we can share all the professional technology with lowest cost.
2) Because we have our own factory, we can not only assure our quality, but also have competitive price.
3) We can also make according to your own design pictures or drawing at your customized size.
